CP-UVR-1601E1-IC2
- Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
- Max 18 channels IP camera inputs, each channel up to 6MP
- Max 64Mbps Incoming Bandwidth
- Instastream/H.265 dual-stream Video Compression
- Support 1 SATA HDD up to 16TB, 2 USB Ports
- Up to 8 channels video stream (analog channel) SMD Plus
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro Lite
Description
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| IP Camera Input | Up to 18 channels of IPC access 2 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled |
| Two-way Talk | Support (share the same audio input with the first channel) |
| User Interface | Web; GUI |
| SMD Plus by DVR | 8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| Video Output | 1 HDMI, 1 VGA, HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Input | 16 channel, BNC |
| Encode Strategy | AI Instastream/Instastream |
| Video Compression | H.265+/H.264+/H.264 |
| Camera Input | 1. CVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 2. TVI: 1080p@ 25/30 fps, 720p@ 25/30 fps 3. AHD: 1080p@ 25/30 fps, 720p@ 25/30 fps 4. CVBS: PAL/NTSC |
| Video Display Split | 1/4/8/9/16 |
| Encoding Capacity | Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/CIF(1 fps–25/30 fps) Sub stream: CIF (1 fps–7 fps) |
| Bit Rate | 32 kbps–6144 kbps |
| Audio Input | 1 channel RCA 16-channel BNC (Coaxial Audio) |
| Audio Compression | G.711A, G.711U, PCM |
| General Alarm | Motion detection, video loss, tampering |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature |
| Audio Sample Rate | 8KHz, 16 bit Per Channel |
| Playback | 1/4/9 Ch. |
| Audio Bit Rate | 64Kbps Per Channel |
| Playback Mode | Instant playback, general playback, event playback, tag playback |
| Backup Mode | USB Device/Network |
| Interface Ports | 2 USB Ports (2.0) |
| Ethernet | 1 (10/1000 Mbps Ethernet port, RJ-45) |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P, ONVIF 21.06; CGI Conformant |
| Power Supply | DC12V/1.5A |
| Power Consumption | <10W(without HDD) |
| Working Temp | -10°C ~ +55°C (+14°F ~ +113°F), 0 ~ 90% RH |
| Dimension | 260.0 mm × 231.4 mm × 47.6 mm |
| Weight | 1.42 kg |
Reviews (0)
Shipping & Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
CP-UVR-0401E1-CV2
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth
- Instastream/H.265/H.264+/H.264 video compression
- 1 HDMI / 1 VGA Simultaneous Video Output
- Support 1 SATA HDD up to 6TB, 2 USB Ports
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
CP-UVR-0401E1-CV5
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth
- Support 1 SATA HDD up to 6TB, 2 USB Ports
- 1 HDMI/ 1 VGA Simultaneous Video Output
- Instastream/H.265/H.264+/H.264 video compression
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
CP-UVR-0401E1-HC
- Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
- Support upto 2MP IP Camera
- Max 20Mbps Incoming Bandwidth
- Instastream/H.265 dual-stream Video Compression
- All channel 1080P Lite Realtime Recording
- Support 1 SATA HDD up to 6TB, 2 USB2.0
- HDMI / VGA Simultaneous Video Output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
CP-UVR-0801E1-IC
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth
- Supports Full-channel AI-Coding
- Instastream/H.265 dual-stream video compression
- Up to 4 channels video stream (analog channel) SMD Plus.
- Support 1 SATA HDD up to 6TB, 2 USB Ports
- 1 HDMI / 1 VGA Simultaneous Video Output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
CP-UVR-3201E2-I
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 16 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth.
- Supports 8-channel AI Instastream
- AI Instastream/ Instastream/ H.265 dual-stream video compression
- Up to 16 channels video stream (analog channel) SMD Plus
- Support 2 SATA HDDs up to 16TB Each, 2 USB Ports
- 1 HDMI / 1 VGA / 1 TV Video output.
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro

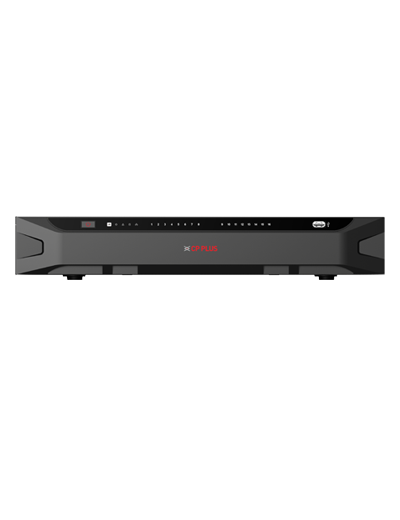

CP-UVR-3201K2-I3-V2
