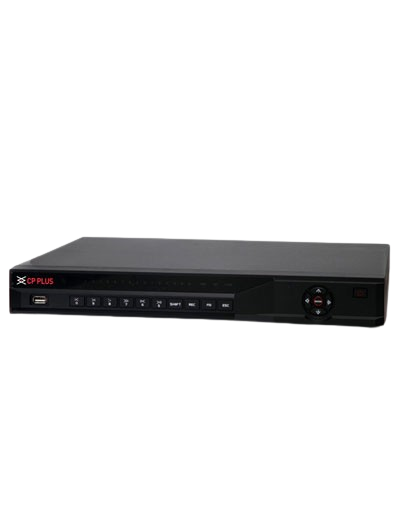

CP-UVR-0801F1-HC
- Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals
- Support upto 6MP IP Camera
- H.265Plus/H.265 dual-stream video compression
- Max 48Mbps Incoming Bandwidth
- All channel 1080P Non-Realtime Recording
- Support 1 SATA HDD up to 6TB, 2 USB Ports(2.0)
- HDMI / VGA Simultaneous Video Output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
Description
| Processor | Embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 8+4 Ch., each channel up to 6MP |
| Two-way Talk | Reuse audio in/out, RCA |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | 1920×1080, 1280×1024, 1280×720 |
| Video Recording | Main Stream: 1st & 2nd channels 5M-N(1~10fps); other channels 4M-N/1080P(1~15fps); 1080N/720P/960H/ D1/CIF (1~25/30fps), Sub stream: CIF/QCIF (1~15fps) |
| Video Display Split | 1/4/8/9 |
| Video Channel | 8 channel, BNC |
| Audio Output | 1 channel, RCA |
| Audio Channel | 1 channel, RCA |
| Motion Detection | MD Zones: 396 (22 × 18) |
| Video Loss | Supports |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 1 SATA port, up to 6TB |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Recording Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Backup Mode | USB Device/Network |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom |
| Max User Account | 128 users |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | RJ-45 port (100M) |
| Interface Ports | 1 HDMI, 1 VGA, 2 USB2.0 |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 16.12, CGI Conformant |
| Power Supply | DC12V/1.5A |
| Power Consumption | <10W(without HDD) |
| Working Temp | -10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% RH |
| Dimension | 197mm x 192mm x 41mm |
| Weight | 0.54kg (without HDD) |
